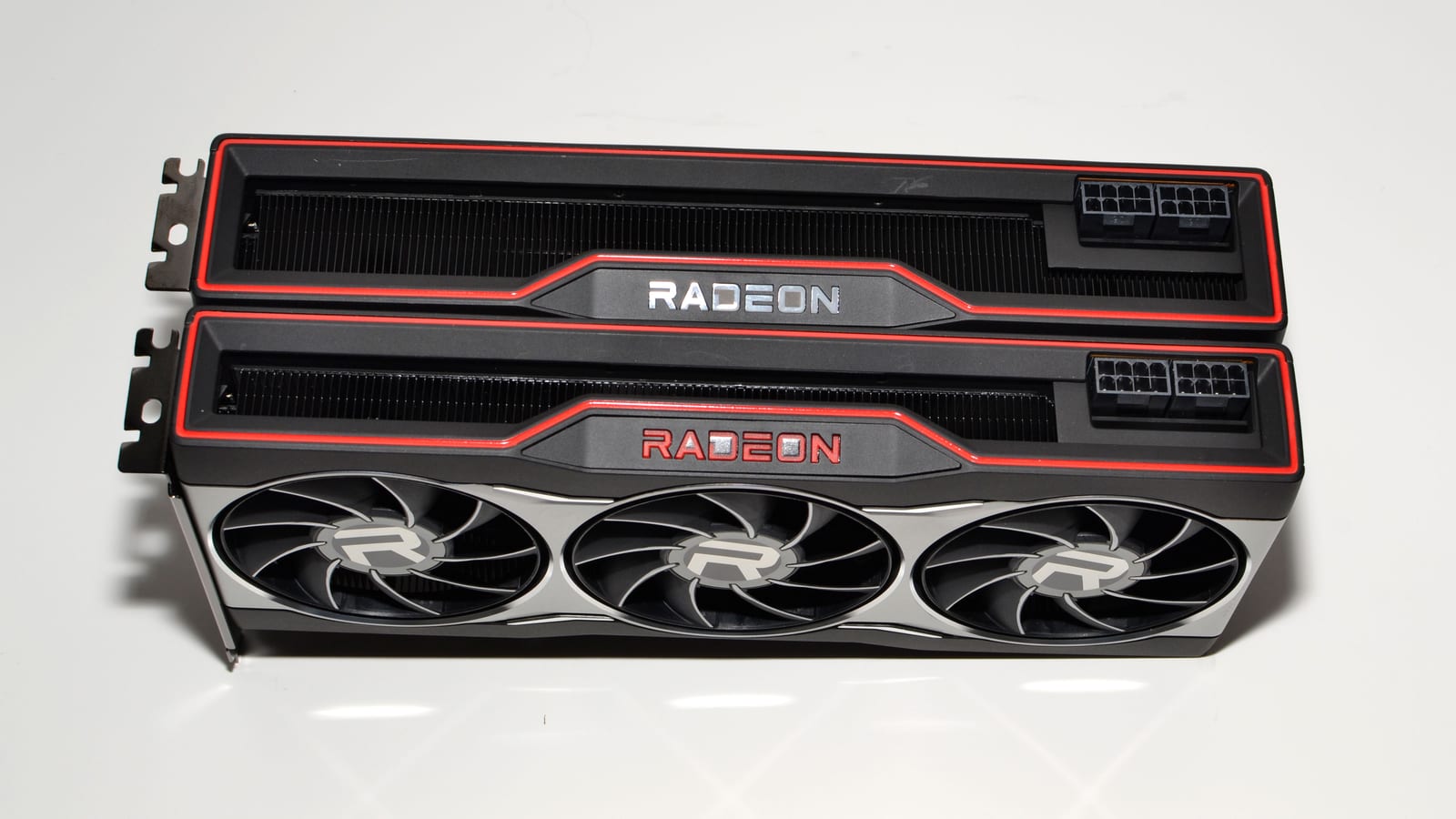

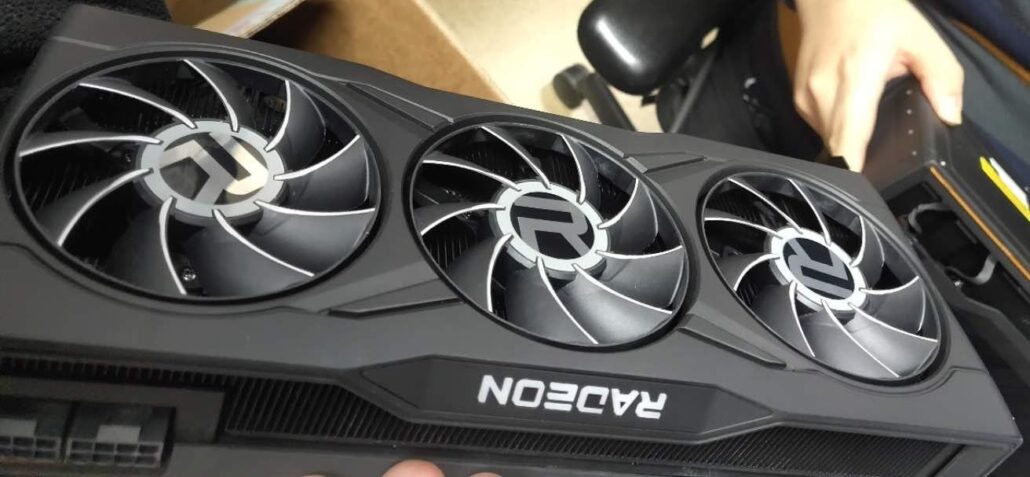

AMD Radeon RX 6800 XT
RDNA 2's finest hour: RTX 3080-class rasterization for $649 with 16GB of VRAM. Ray tracing was token, but the bigger memory buffer helped it age far more gracefully than its 10GB rival.
Pros
- RTX 3080-class raster for $649
- 16GB of GDDR6
- 128MB Infinity Cache design
- Standard 8-pin connectors
Cons
- First-gen ray tracing is weak
- FSR upscaling trails DLSS image quality
- 300W board power
Average
Computed from specs & benchmarks via our public methodology.
Full specifications
Everything we track for the AMD Radeon RX 6800 XT
General
- Announced
- 2020
- Architecture
- RDNA 2
- Process
- 7 nm
- TDP
- 300 W
- Power connector
- 2x 8-pin
Cores & Clocks
- Shading units
- 4,608
- RT cores
- 72
- Base clock
- 1,825 MHz
- Boost clock
- 2,250 MHz
Memory
- VRAM
- 16 GB
- VRAM type
- GDDR6
- Bus width
- 256 bit
- Bandwidth
- 512 GB/s
Benchmarks
- 3DMark Time Spy
- 19,381Top 27%
- 3DMark Speed Way
- 3,648Top 44%
- PassMark G3D
- 25,109Top 27%
- 1080p Ultra
- 118 fpsBottom 50%
- 1440p Ultra
- 89 fpsBottom 50%
- 4K Ultra
- 51 fpsTop 50%
Features
- Upscaling
- FSR 3
Quick answers
Is the AMD Radeon RX 6800 XT good in 2026?
The AMD Radeon RX 6800 XT earns an Inno Score of 50.4/100 (“Average”) based on its specs and benchmark results. RDNA 2's finest hour: RTX 3080-class rasterization for $649 with 16GB of VRAM. Ray tracing was token, but the bigger memory buffer helped it age far more gracefully than its 10GB rival.
What are the key specs of the AMD Radeon RX 6800 XT?
VRAM: 16 GB · Boost clock: 2,250 MHz · TDP: 300 W · 3DMark Time Spy: 19,381
What are the closest alternatives to the AMD Radeon RX 6800 XT?
Its closest rivals on InnoReviews are NVIDIA GeForce RTX 3080, NVIDIA GeForce RTX 5060 Ti 16GB, NVIDIA GeForce RTX 5060 Ti 8GB — open the comparison pages for a spec-by-spec breakdown.
