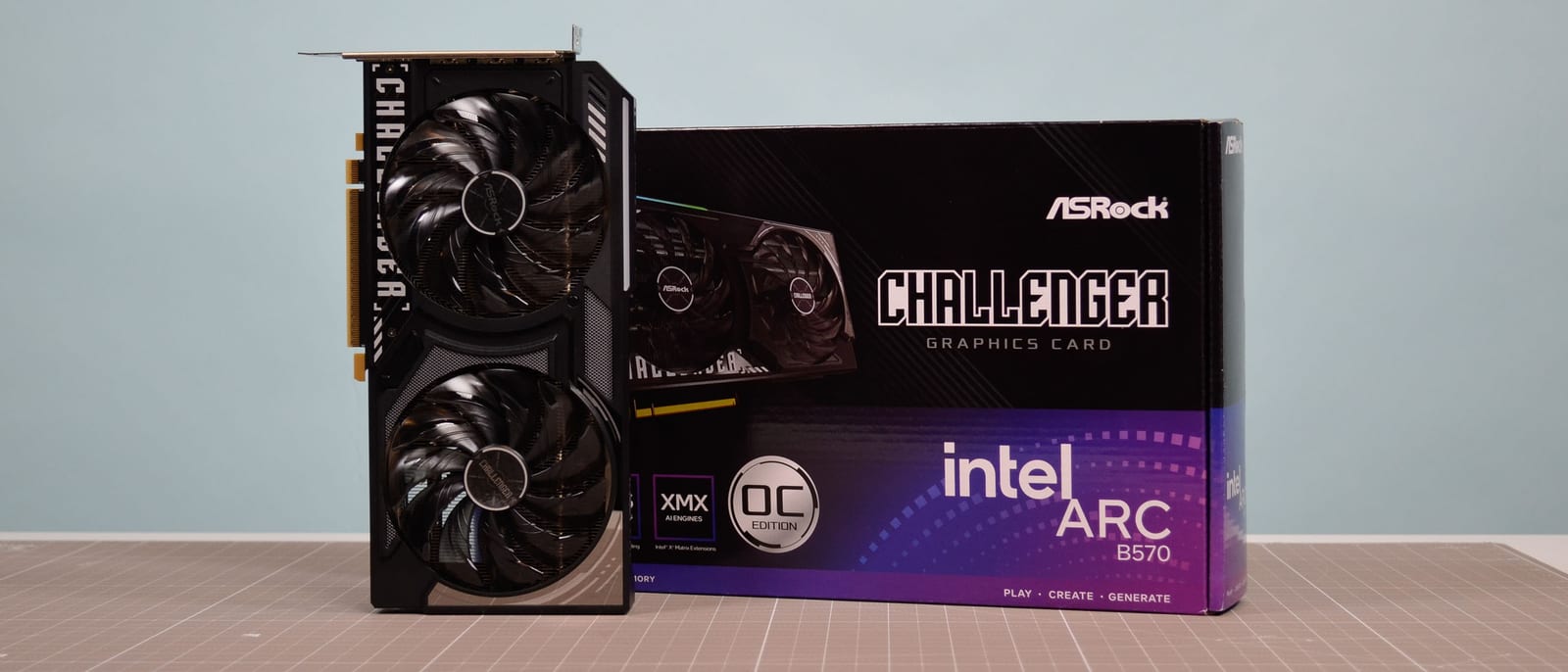

Intel Arc B570
Battlemage's $219 entry point: 2,304 Xe2 shading units, 10GB of GDDR6 on a 160-bit bus and a 150W board power. It undercuts everything else with a 10GB frame buffer, and ships with XeSS 2 frame generation and AV1 encode.
Pros
- 10GB of VRAM for $219
- XeSS 2 with frame generation
- Only 150W from a single 8-pin
- Full AV1 encode and decode
Cons
- Still needs Resizable BAR for full performance
- Noticeably slower than the B580 for only $30 less
- Driver overhead penalises weaker CPUs
Below average
Computed from specs & benchmarks via our public methodology.
Full specifications
Everything we track for the Intel Arc B570
General
- Announced
- 2025
- Architecture
- Xe2 (Battlemage)
- Process
- 5 nm
- TDP
- 150 W
- Power connector
- 1x 8-pin
Cores & Clocks
- Shading units
- 2,304
- RT cores
- 18
- Tensor / AI cores
- 144
- Base clock
- 2,200 MHz
- Boost clock
- 2,500 MHz
Memory
- VRAM
- 10 GB
- VRAM type
- GDDR6
- Bus width
- 160 bit
- Bandwidth
- 380 GB/s
Benchmarks
- 3DMark Time Spy
- 11,600Bottom 51%
- 3DMark Speed Way
- 2,600Bottom 27%
- PassMark G3D
- 12,300Bottom 24%
- 1080p Ultra
- 88 fpsBottom 19%
- 1440p Ultra
- 62 fpsBottom 17%
- 4K Ultra
- 32 fpsBottom 19%
Features
- Upscaling
- XeSS 2
Quick answers
Is the Intel Arc B570 good in 2026?
The Intel Arc B570 earns an Inno Score of 43.6/100 (“Below average”) based on its specs and benchmark results. Battlemage's $219 entry point: 2,304 Xe2 shading units, 10GB of GDDR6 on a 160-bit bus and a 150W board power. It undercuts everything else with a 10GB frame buffer, and ships with XeSS 2 frame generation and AV1 encode.
What are the key specs of the Intel Arc B570?
VRAM: 10 GB · Boost clock: 2,500 MHz · TDP: 150 W · 3DMark Time Spy: 11,600
What are the closest alternatives to the Intel Arc B570?
Its closest rivals on InnoReviews are AMD Radeon RX 7600 XT 16GB, NVIDIA GeForce RTX 4060, AMD Radeon RX 7600 — open the comparison pages for a spec-by-spec breakdown.
